4 - Orbital silo - New generation

The largest range available on the market.
Operation with many refrigerants (CO², R449A, R407F, R134A, NH3, ....)

Ice storage

General information

2 new generations :

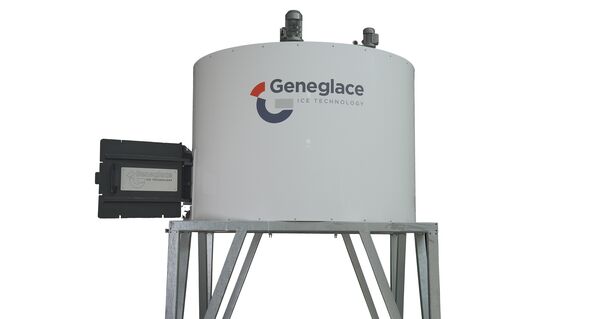

- bin in polyethylene high density (food compabible)

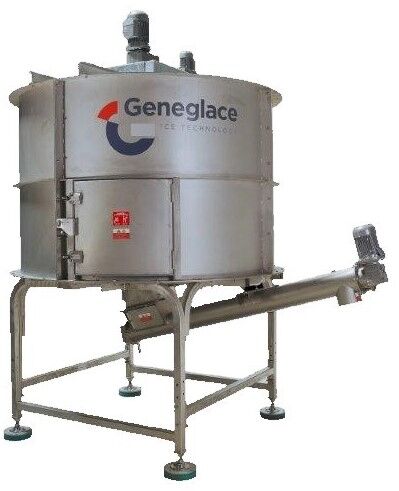

- removable stainless steel panels to be mounted and insulated on site

storage capacity from 1 to 30 TONS

Several generators or packs can be installed on the bowl and several configurations are possible (ice delivery height, type of on/off control, type of delivery, ice level sensors and supports, stainless steel parts). Vertical silo - Automatic flake ice delivery system FIFO (First In - First Out)

SILO	MODEL	MAXIMAL STORAGE CAPACITY TONS
Insulated polyester silo (average flow rate 80 kg/min)	AOS 80 S*	0.7 - 0.9
	AOS 80 M*	1.2 - 1.4
	AOS 80 L*	2.2 - 2.4
	AOS 80 XL*	3.1 - 3.3
	AOS 80 XXL*	4.1 - 4.3
Non-insulated polyester silo (average flow rate 130 kg/min)	AOS 130 S	5.2 - 6.3
	AOS 130 M	7.2 - 8.2
	AOS 130 L	9.2 - 10.2
	AOS 130 XL	11.1 -12.2
non-insulated stainless steel silo to be assembled on site (average flow rate 260 kg/min)	AOS 260 S	12.3-13.6
	AOS 260 M	15.3 - 17
	AOS 260 L	20.2 - 23
