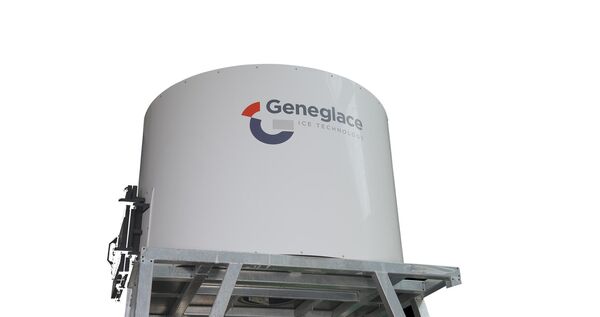

Orbital silo

Vertical silo - Automatic flake ice delivery system FIFO (First In - First Out)

STORAGE CAPACITY FROM 1 TO 30 TONS



  •  Several generators or packs can be installed on the bowl and several configurations are possible (ice delivery height, type of on/off control, type of delivery, ice level sensors and supports, stainless steel parts).
SILO

              MODEL
MAXIMAL
STORAGE CAPACITY  TONS

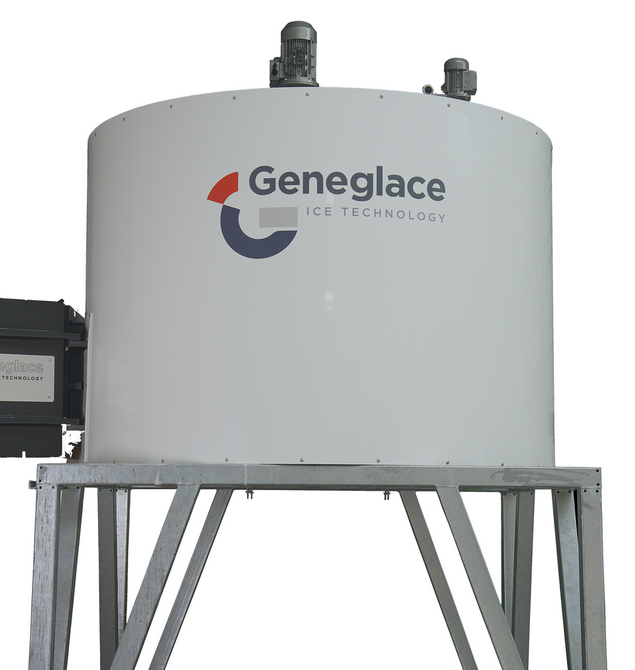

Insulated polyester
silo
(average flow rate
80 kg/min)

AOS 80 S 0.7 - 0.9
  AOS 80 M 1.2 - 1.4
  AOS 80 L 2.2 - 2.4
  AOS 80 XL 3.1 - 3.3
  AOS 80 XXL 4.1 - 4.3
Non-insulated polyester silo
(average flow rate
130 kg/min)
AOS 130 S 5.2 - 6.3
  AOS 130 M 7.2 - 8.2
  AOS 130 L 9.2 - 10.2
  AOS 130 XL 11.1 -12.2

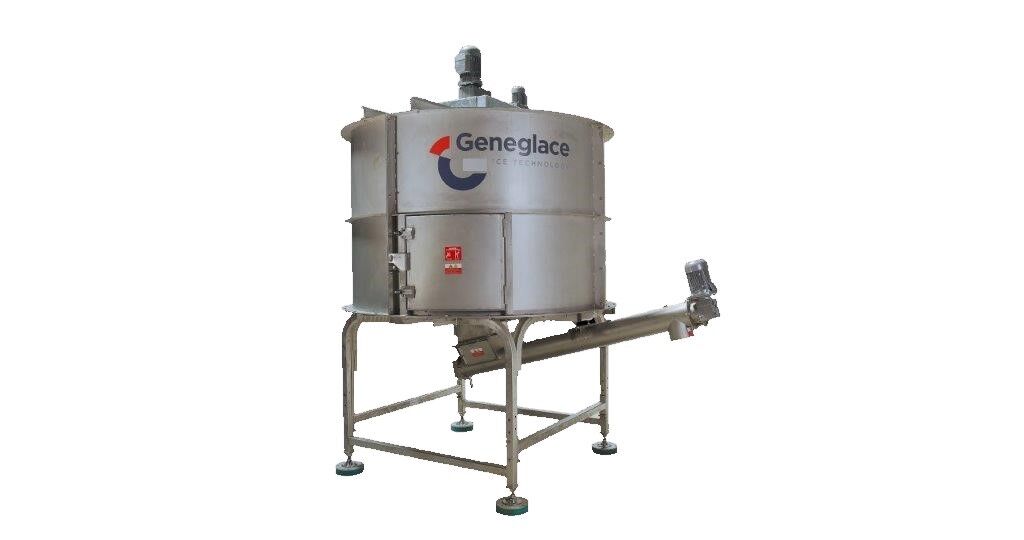

non-insulated stainless steel silo to be assembled on site (average flow
rate 260 kg/min)
AOS 260 S  12.3-13.6
  AOS 260 M  15.3 - 17
  AOS 260 L 20.2 - 23

Enlarge the picture
Stainless steel screw





Inside the silo
AOS260L SILO INSTALLATION
